Intelligent online banking robot - automatic download and reconciliation of bank statements

One smart online banking robot can handle multiple people

Introduction to the Smart Online Banking Robot

The Smart Online Banking Robot integrates an RPA robot, an all-in-one online banking terminal, online banking business processes, and the optional UKEY management system.

For the Smart Online Banking Robot rental service, Zezhong provides the necessary software and hardware, as well as operational maintenance services, to ensure the normal operation of the system and business. Users pay an annual fee.

The Smart Online Banking Robot primarily downloads online banking transaction and receipt data for financial institutions, providing "out-of-the-box" functionality, unattended operation, automated business processing, centralized and shared U-Shield management, automatic notifications, and dedicated operations and maintenance.

Advantages of Smart Online Banking Robots

Private Robot Deployment:
Data (account passwords can be encrypted) is securely and reliably stored locally;

The robot is ready to use right out of the box:
No human resources or maintenance required, and visible results can be seen within the same day.

The value and effectiveness of intelligent online banking robots

Smart online banking robots can generate immediate value and effects for users

Security

The intelligent online banking robot's software and hardware are all privately deployed, data is stored locally, and account passwords are encrypted.

Stable

The intelligent online banking robot can perform unattended transactions 24/7, with execution methods including scheduled and scheduled execution.

Easy to use

Our company provides operation and maintenance for the intelligent online banking robot, and the business processes are easy to maintain using natural language.

Efficient

Once installed, the intelligent online banking robot requires only simple configuration of the IP address, USB key, and account and password settings to begin operation. Overall efficiency is improved by at least 50%.

Cost

Time costs are reduced by at least 70%, and financial costs are reduced by at least 70% annually.

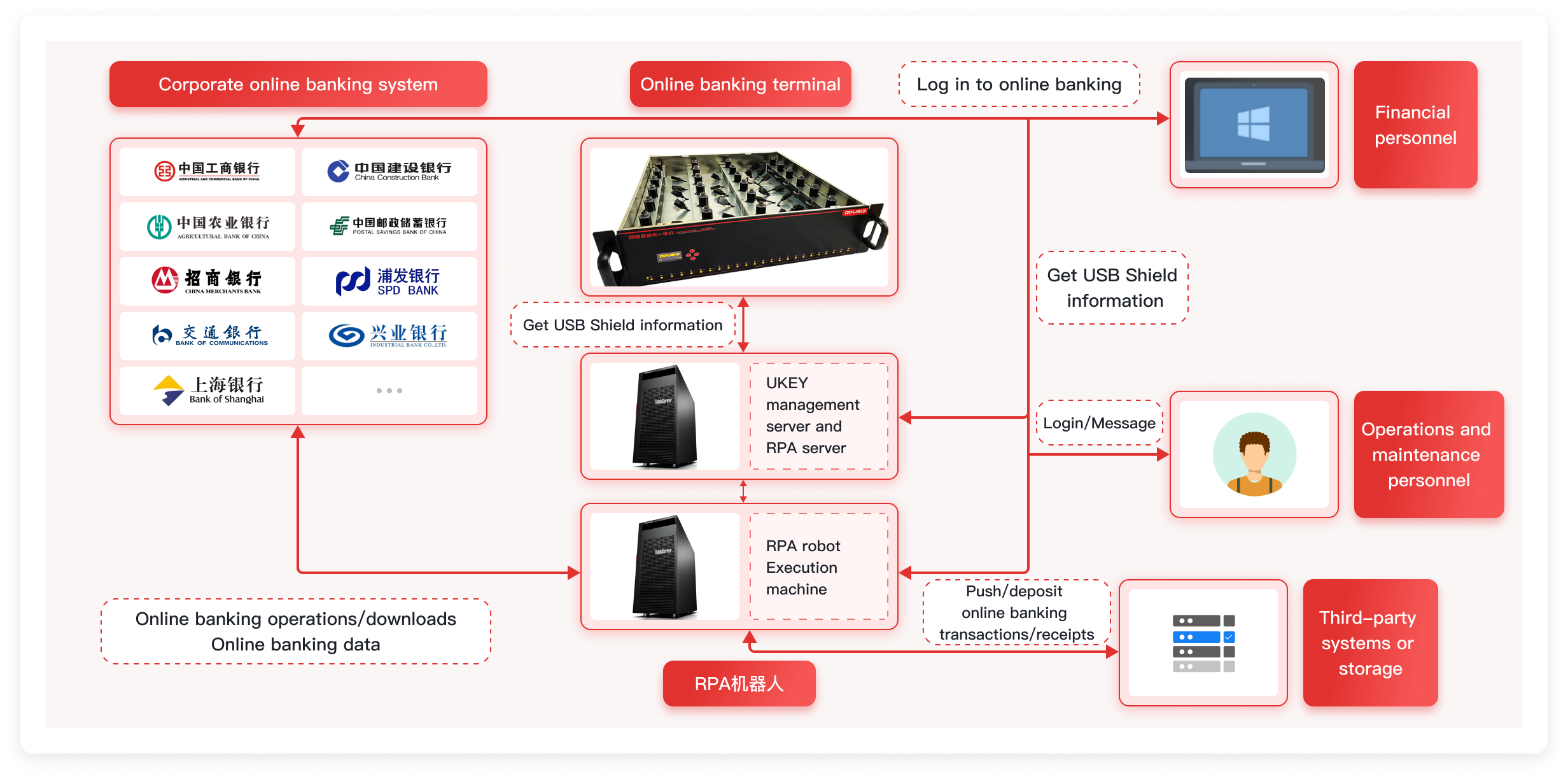

Business architecture and business processes

Smart online banking robot accessories

Serial Number	Accessory name	Expiration Date	Accessory Description	Remark
1	RPA robots	1 month/1 quarter/1 year	1 set, including 1 license each for the controller, designer, and actuator	Required
2	Online banking terminal	1 month/1 quarter/1 year	1 unit, supports 2/24 first-generation shields (U-Shield) or 2/24 second-generation shields (OK-key shield)	Required
3	Business Process	1 month/1 quarter/1 year	2/5 banks, services include login, transaction query and download, receipt query and download	Required
4	UKEY management system	1 month/1 quarter/1 year	1 set, supports 2/24 UKEYs	Optional
5	Banking	1 month/1 quarter/1 year	1, can be added to the list or customized	Optional
6	Customized services	/	Customized development according to needs	Optional

Smart Online Banking Robot User Rights

User Rights
Expiration Date	1 month/1 quarter/1 year
Maintenance services	1 year, mainly responsible for business maintenance of the purchasing bank, as well as software and hardware maintenance (bilateral/unilateral operation and maintenance)
Support scope	1、U-Shield type and quantity: supports 2/24 first-generation shields (U-Shield) or 2/24 second-generation shields (OK key shield)
	2、Number of banks: 2/5
	3、Number of bank accounts: 2/24
	4、Business scope: Login, transaction query, transaction download, receipt query, receipt download, download data and store it in a designated location

Smart online banking robot hardware requirements

Serial Number	Accessory name	Quantity	Accessory Description	Remark
1	Control Server	1 unit	1.Operating system: Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, etc.	UKEY management server and RPA server
			2.Hardware: CPU: 8 cores, memory: 32G;
			3.Purpose: Deploy UKEY management and control system and RPA robot control center.
2	Robotic actuators	1 unit	1. Operating system: Windows 10, Windows 11, etc.	RPA robot execution machine
			2.Hardware: CPU: 4 cores, memory: 16G;
			3.Purpose: Deploy RPA robots to perform business operations.

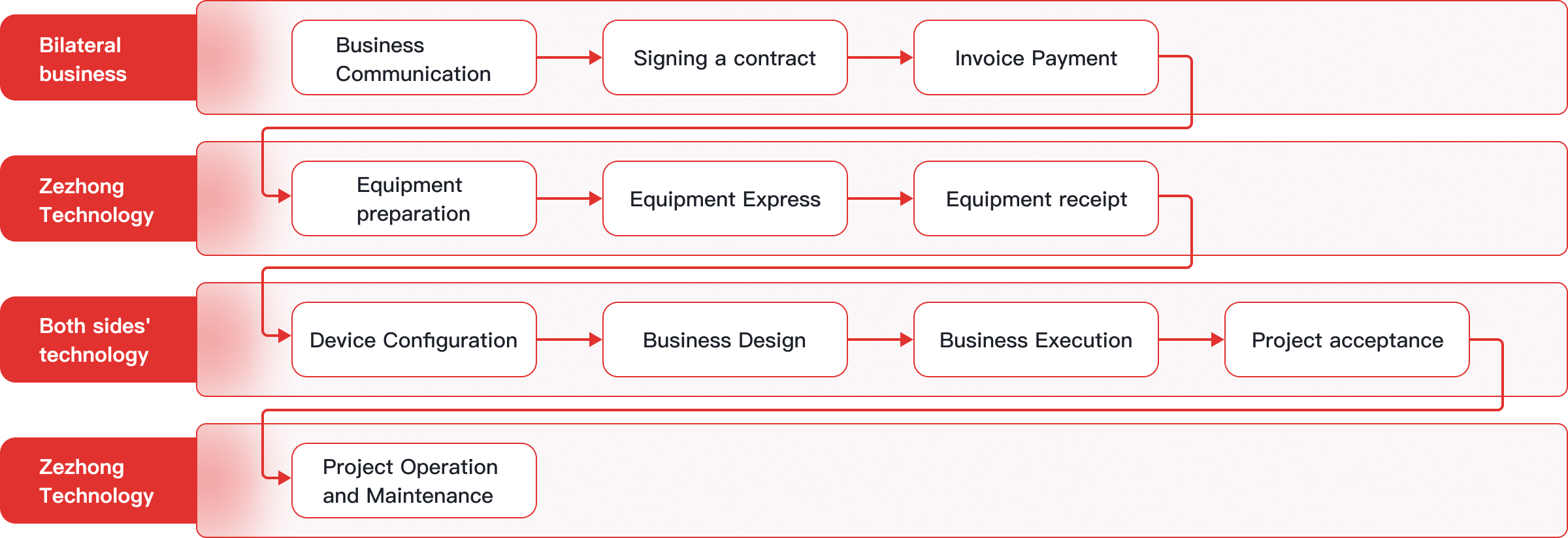

Intelligent online banking robot leasing

Business, deployment, and operation and maintenance processes

Bank List ×

I Know

NetUSB/24 MATE Online Banking Automated Kiosk×

Introduction:

The Zezhong RPA Online Banking Automation Machine is a fully integrated automation device designed specifically for online banking automation RPA application scenarios. Featuring a magnesium-aluminum alloy chassis, it can be used on a desktop or deployed in a standard 19-inch cabinet. It integrates a high-performance 24-port USB server and a USB-Shield OK button matrix, creating a complete all-in-one design. Its fully sealed, retractable structure, a top cover with a physical lock, and cabinet rails allow users and RPA implementers to quickly implement RPA online banking automation scenarios, eliminating the tedious tasks of on-site hardware deployment, debugging, and wiring.

Function:

The online banking automation machine provides 24 standard USB ports for centralized management of various bank online banking USB-Shields and RPA automation. Compatible with all bank USB-Shields, it also integrates 24 USB-Shield OK button pads and can be used simply by connecting to the corporate LAN.

Features and Benefits:

• Highly integrated network intelligent USB HUB (USB Server) and OK button automatic key matrix functions, a fully integrated design; supports simultaneous pressing of the front OK confirmation buttons of 24 USB-Shields of various shapes;
• Utilizes a domestically produced, independently controllable 22nm quad-core Cortex-A55 industrial-grade embedded CPU with a main frequency of up to 2.0GHz;
• Utilizes a magnesium-aluminum alloy chassis with a key lock, making it rodent-proof, insect-proof, and dust-proof, ensuring security and confidentiality;
• The front panel features a Chinese red and industrial black design, featuring power and data indicators for each USB port, an HMI interface, and physical buttons for configuring network parameters;
• Standard 19-inch 3U rack-mountable enclosure with cabinet pull-out rails for easy use and maintenance; high-density deployment saves space; up to 240+ USB-Shields with OK buttons can be deployed in a standard cabinet;
• Pressing the USB-Shield OK button via an electromagnetic ejection mechanism and circular pressure plate ensures 100% success and long-lasting performance; the press time is adjustable.
• Adhering to the industry-leading stability and security of Apus, the USB-Shield ensures stable connection and 24/7/365 connectivity.
• A wide range of user-friendly accessories, including silicone pads and adhesive tapes of varying thicknesses, device rails, mounting ears, power cables, network cables, screws, and more.
• Providing an RPA automation interface and compatibility with various RPA tools.
• Suitable for large-scale deployment of USB-Shield security management in large-scale financial shared services centers, as well as for centralized security management and financial robot use of dozens or hundreds of USB-Shields in small and medium-sized growing enterprises.
• Integrating with the Zezhong Ukey Manager enterprise-level USB-Shield management platform, it enables centralized and unified management of USB-KEYs. *Separation of user and USB-Shield, allowing for use of USB-Shields according to account permissions. *USB-Shield certificate expiration reminders. *USB-Shield inventory. *USB-Shield online monitoring. *USB-Shield usage audits. *Abnormal alarms. *Complex organizational setup and management. *Remote use of USB-Shields and pressing the OK button. *Batch import and export *Usage statistics and sorting *Security specification mechanism *Automatic RPA invocation and other security management features

Security：

• Encryption: SSL, TLS
• OPEN VPN ,PPTP
• Certificate management: self-signed certificate,
• certificate request, PKCS#12 certificate
• TCP port access control
• Device access control (password protection)
• Device and USB Port Connect IP Table
• USB port deactivation
• Security code for connect device

Port Binding/Programming Interface/Port Mapping/API:

• Provides the RPUSI Utility visual port binding tool
• Provides a low-level command line interface
• Provides Web Socket API calls

Human Machine Interface and Buttons HMI:

• Front panel with LCD display, displays IP address, device name, etc.
• Network parameters can be set or modified using buttons

Certifications (Notifications):

• CE: EN55024:2010 , EN55022:2010, EN61000-3-2:2014,EN61000-3-3:2013 EN60950-1:2006+A11:2009+A1:2012+A12
• FCC Part15
• CCC Test Report (GB4943.1-2011)
• Nationally recognized third-party security vulnerability scan and Microsoft WHQL certification

Power Supply：

Supply voltage: One standard 220V AC input with fuse.
Input voltage range: 90-264VAC/127-370VDC, universal full-range AC/DC input voltage. Short-circuit protection, overload protection, overvoltage protection, and overtemperature protection are also available.

Rated Power:

75W

USB Port Current and Control DC:

• Each port provides a maximum current output of 1A.
• Independent DC on/off control for each port.

Indicator LED:

• Power
• System
• USB device insertion indicator
• USB port DC power indicator
• Network indicator

Operating Environment

• Temperature: -20–70°C
• Relative humidity: 0–90 %

Dimensions (Width, Height, Depth): Standard

3U rack-mountable

• 430 × 470 × 130 mm

Weight

• 8.50 kg
